Film Slitting Machine
slitting machine suit to slit big roll plastic film into small roll plastic film,suit to slit plastic film,paper roll,aluminum foil,stretch film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
BOPP Film Slitting Machine

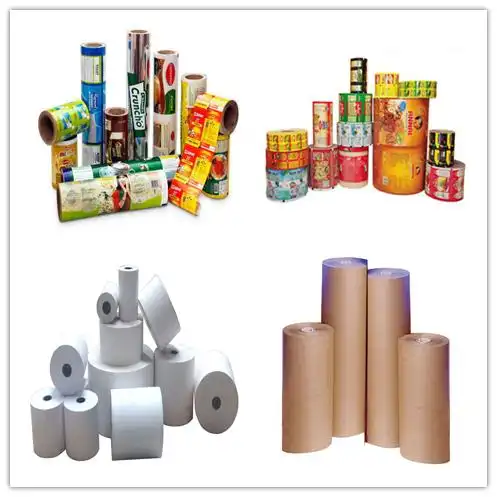

The BOPP Film Slitting Machine is designed to cut and rewind various types of roll materials such as PET, CPP, CPE, PVC, aluminum foil, and paper. It provides precise trimming, separation, and cutting of materials, tailored to specific production requirements. This slitting machine features edge position control and an automatic tension controller for enhanced functionality.
The slitter machine is designed to handle LDPE, HDPE, LLDPE, BOPP, PP, PET films, and paper within a width range of 100mm-1300mm.
It features an inverter-controlled speed for efficient power savings and cost-effectiveness.
Equipped with edge position control and an automatic tension controller, this machine ensures precise slitting operations.
The screw material, 38CrMoAl, guarantees long-term usability. With a warranty of one year, it can continuously operate 24/7.
The user-friendly design makes it ideal for beginners, with power options customizable based on location requirements (e.g., USA 480V 60Hz, Mexico 440V/220V 60Hz).
Post-purchase support includes on-site installation and training by experienced engineers. Customized machines or OEM designs are also welcomed.
| Type | LFQ-700A | LFQ-1100A | LFQ-1300A |
| Max.Width of Mother Roll | 700mm | 1100mm | 1300mm |
| MAX.Diameter of Mother Roll | Φ600mm | Φ600mm | Φ600mm |
| Width of Final Roll | 30-600mm | 30-600mm | 30-600mm |
| Material | BOPP,OPP,CPP,PET,LDPE,HDPE,Paper | ||
| Slitting and Rewinging Speed | 5-160m/min | 5-160m/min | 5-160m/min |
| Tolerance of EPC | <±0.5mm | <±0.5mm | <±0.5mm |
| Total Power | 2.7kw | 3.5kw | 3.5kw |
| Machine Weight | 1200kg | 1500kg | 1800kg |
| Machine size | 2000×1110×1400mm | 2400×1110×1400mm | 2600×1110×1400mm |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Material Core Diamater | 58mm,76mm | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

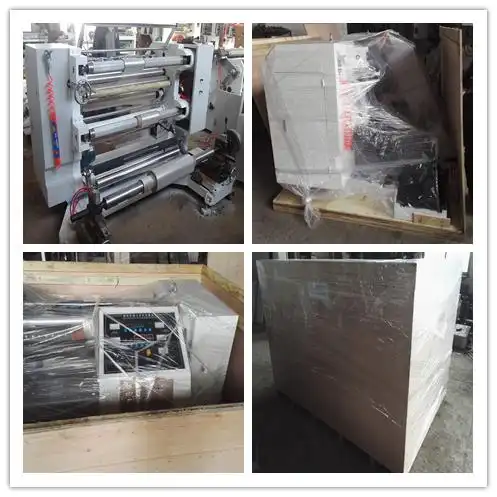

If you only buy one machine,we will pack machine with wooden pack,and loading container withLess Than Container Load（LCL）. If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load). Our Main parts cooperator as following brand,but standard parts all made from China. How To Find Polyethelene For Blown Film Extrusion. Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).

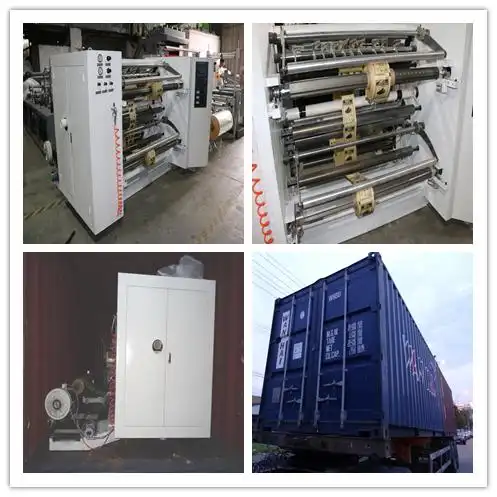

Shipment
shipment of plastic bag machine
instalment service
install machines in customer factory
Machine parts supplier
Material supplier
Extrusion Film Extrusion use Polyethelene,such as
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
